Analyzer & tuner
See what you hear.
A large spectrum in its own windows and a tuner that listens right on the console channel.

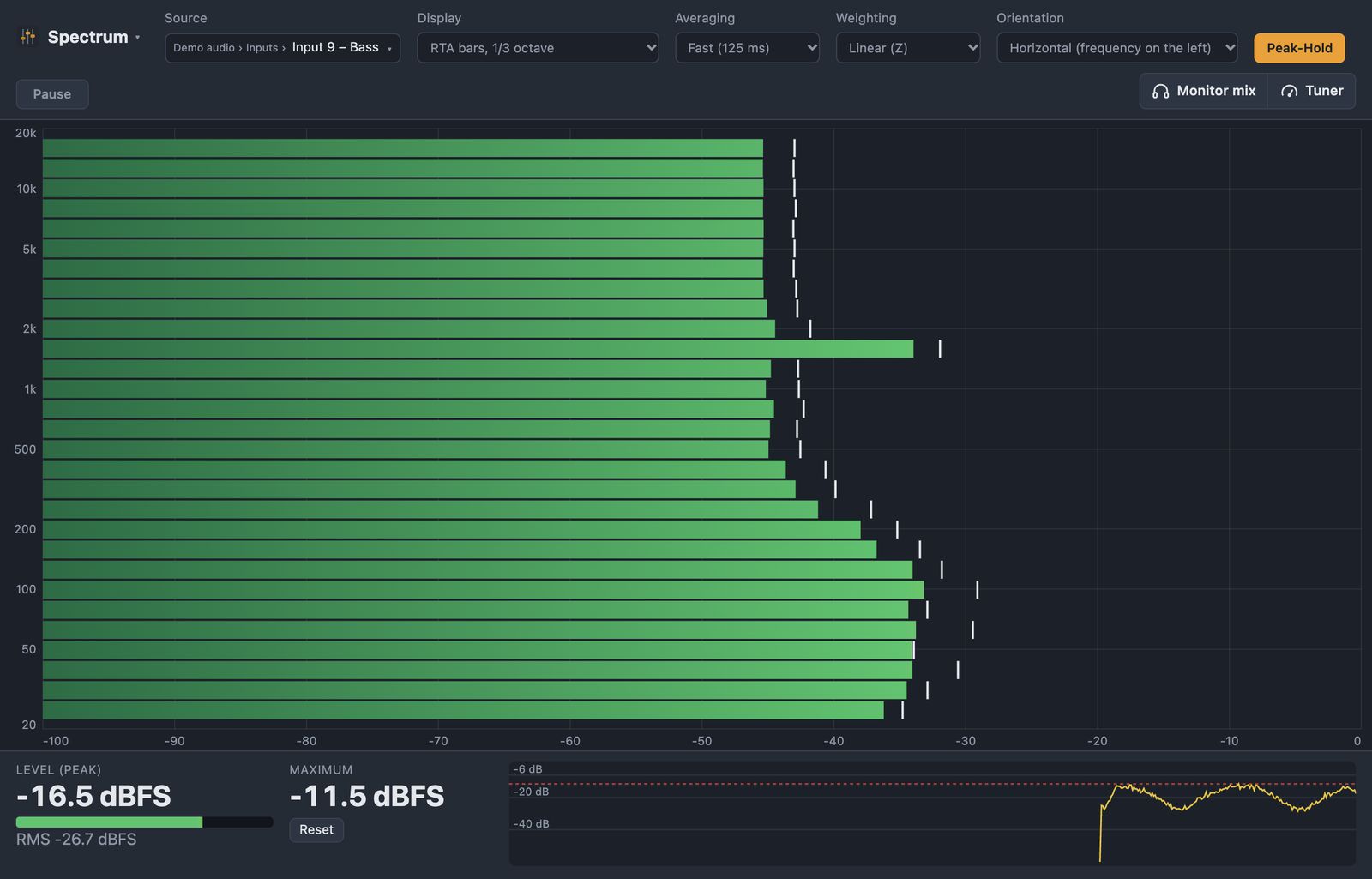

Spectrum analyzer
A large spectrum wherever you need it.
The analyzer opens in a separate window – several at once with different sources, and even without a console at all, for example on a second screen next to the console.
- Source: any input of any audio device – with channel names for the console’s USB –, any output of your computer (captured) or the console’s RTA for every channel and Main LR, on the X32 also for buses, matrices and mono

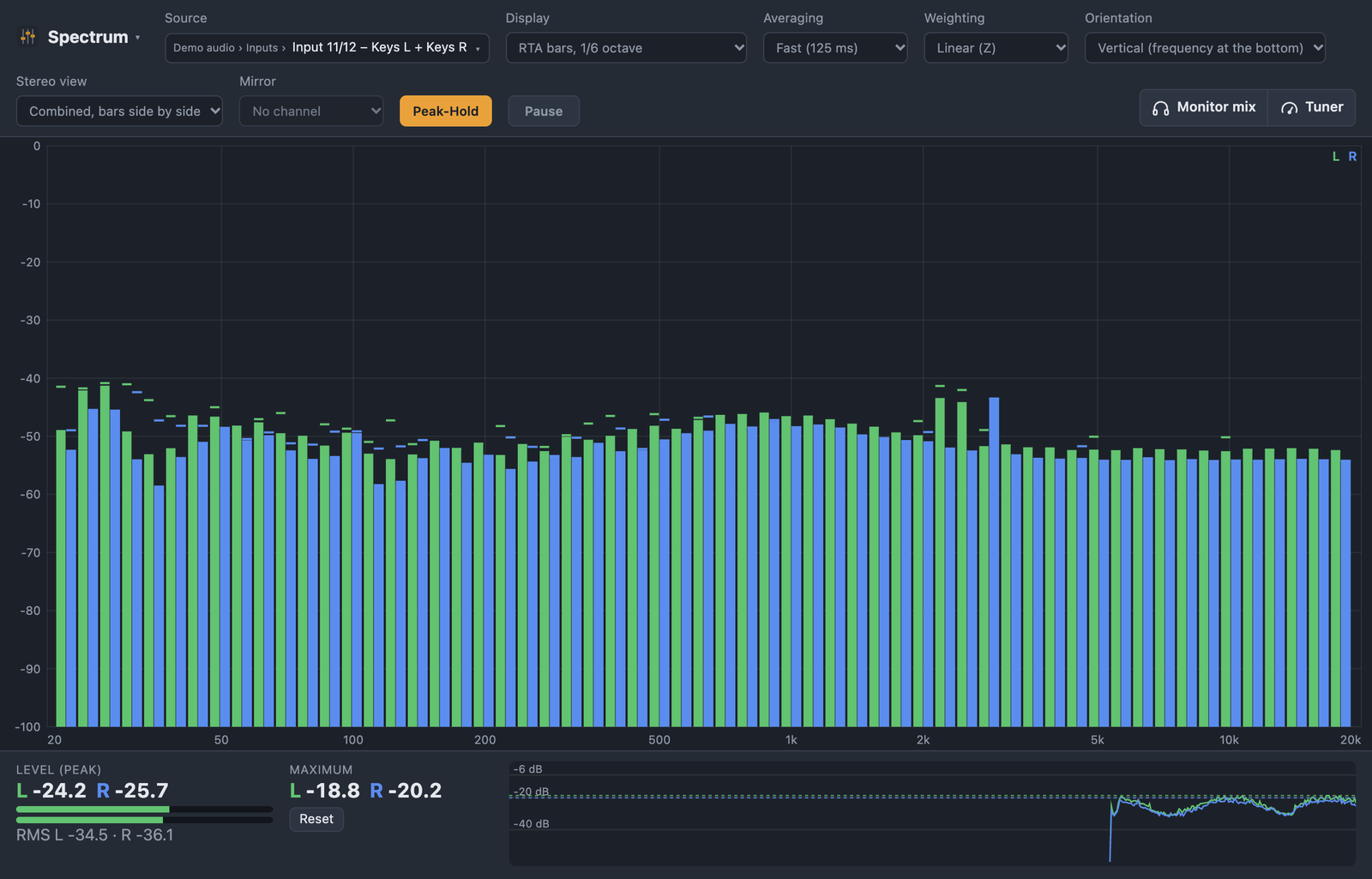

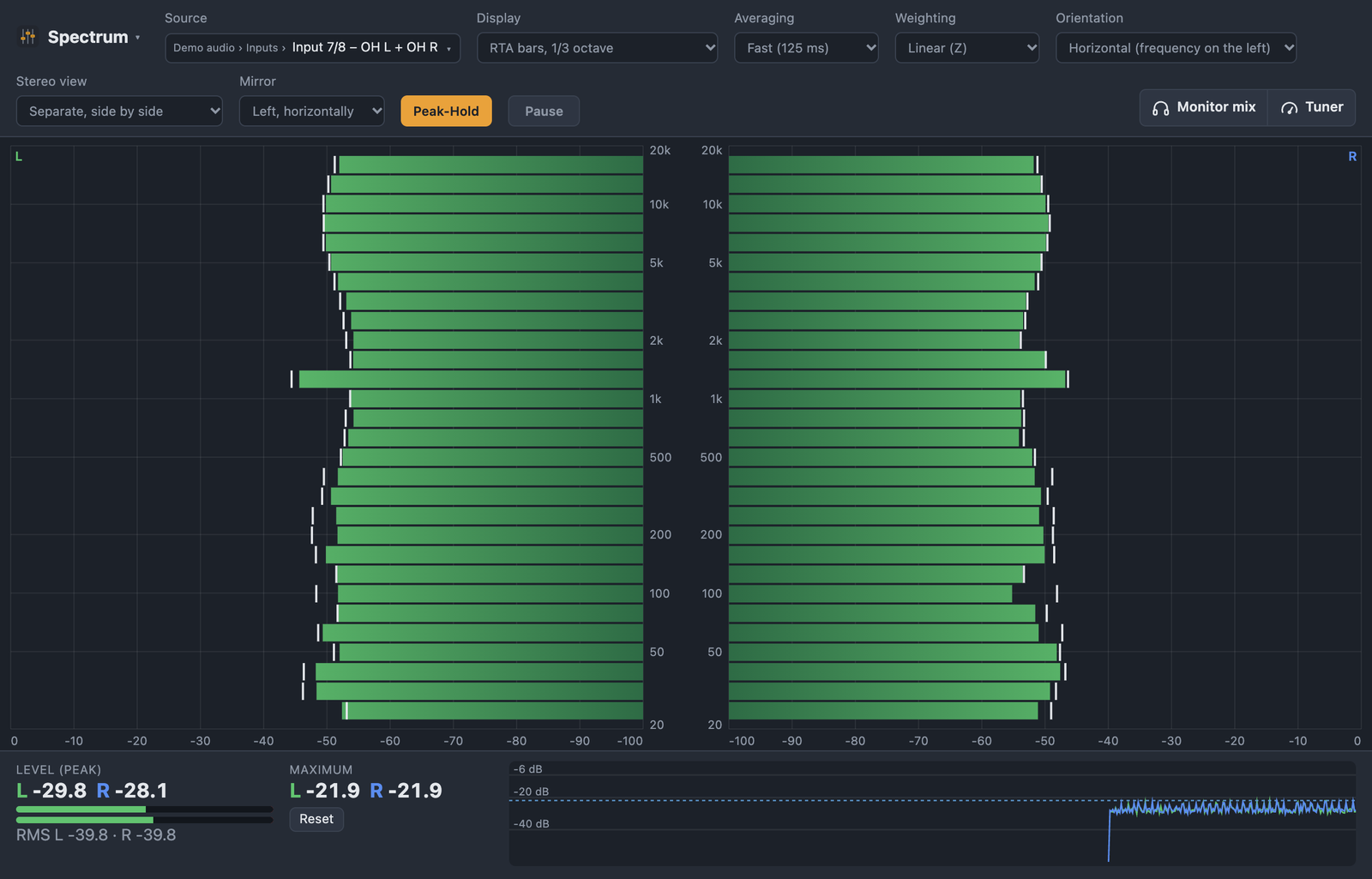

- Stereo pairs side by side, stacked or combined in one area
- The microphone of your phone, tablet or laptop as a source, too – for a quick look from the middle of the room, for example

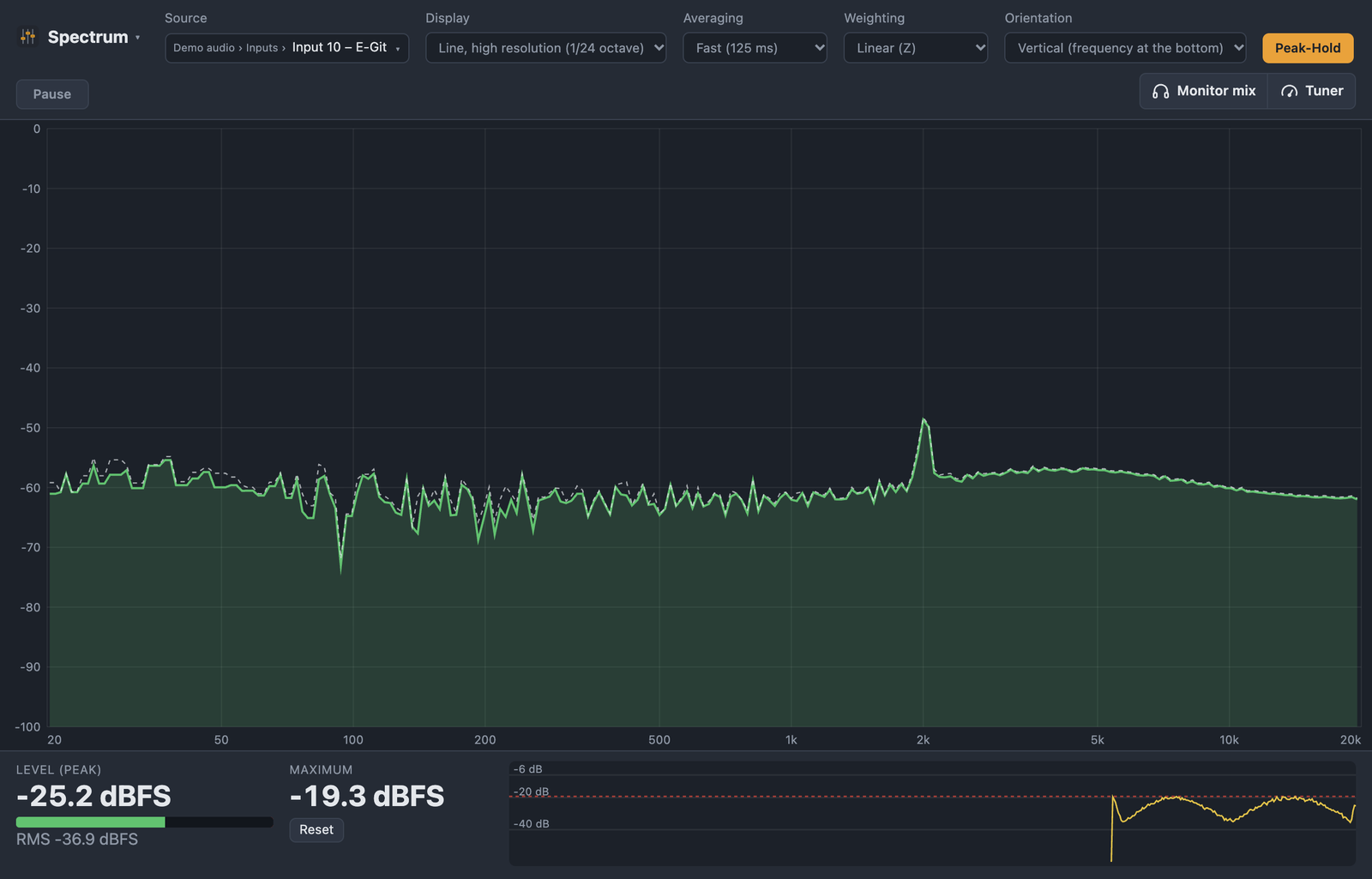

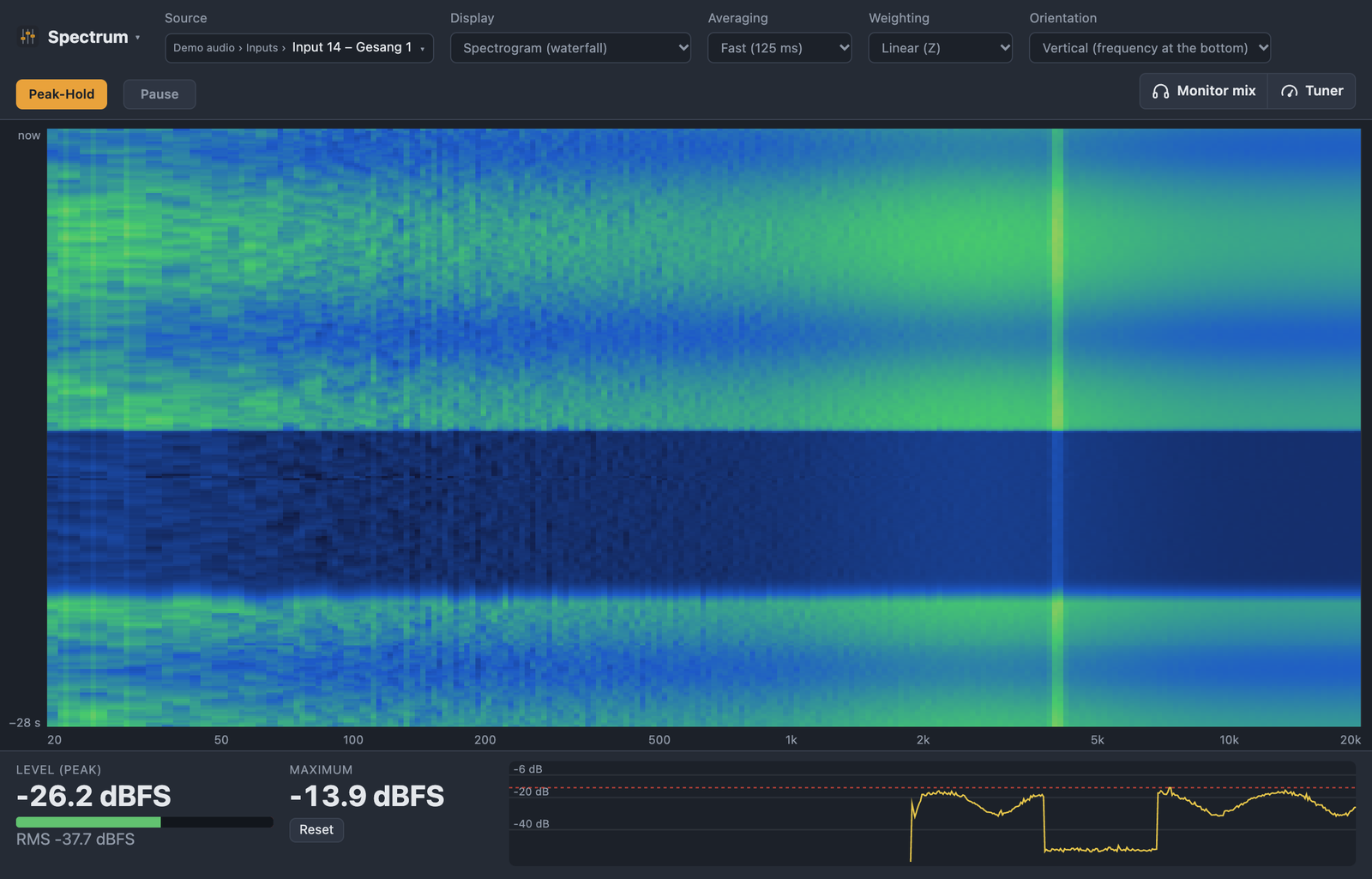

- RTA bars (1/3 or 1/6 octave), line (1/12 or 1/24 octave) or spectrogram – vertical or horizontal
- Averaging fast or slow, weighting Z, A or C, peak hold
- Level with peak, RMS, maximum and the history of the last minute

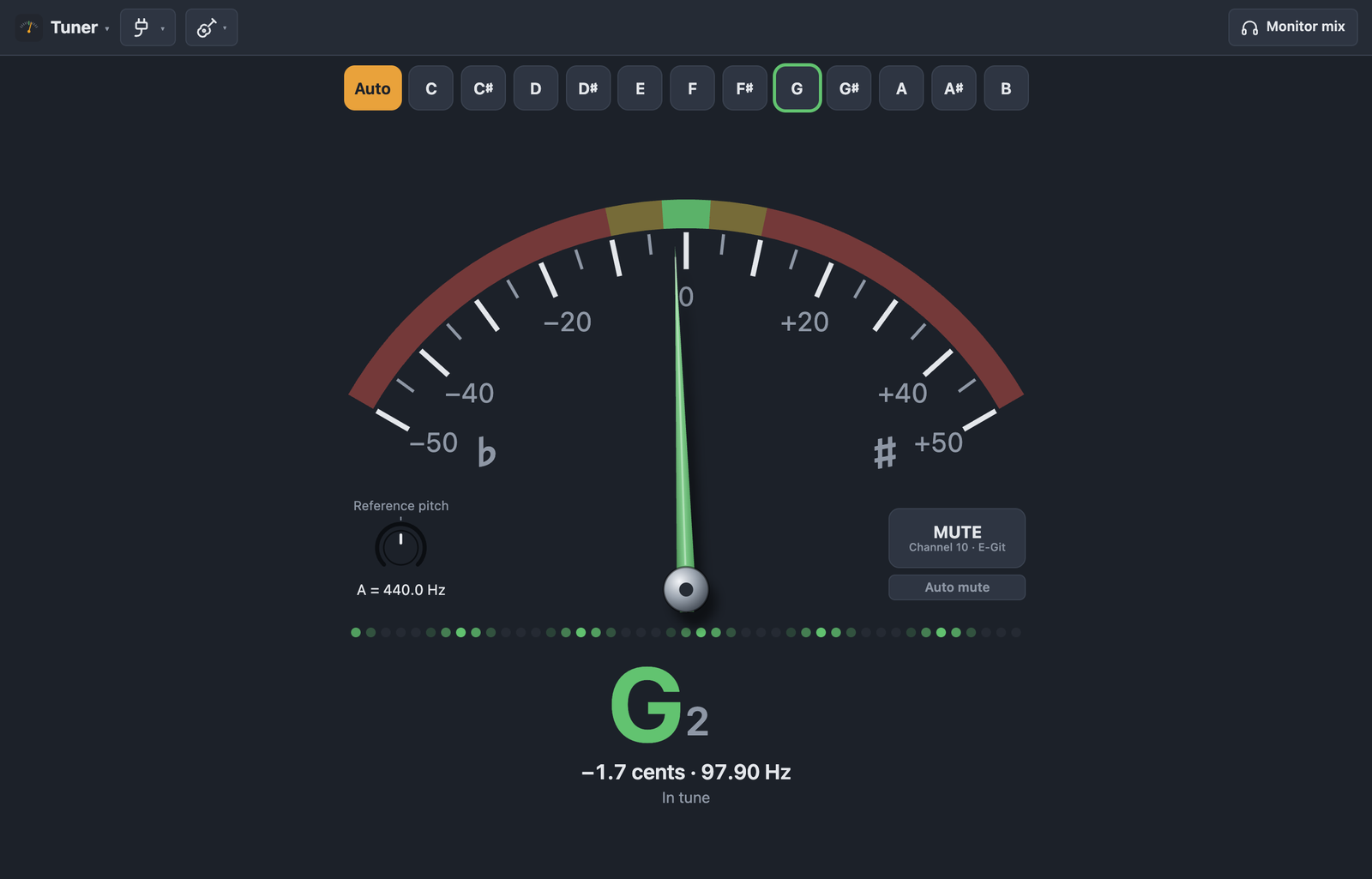

Tuner
Tune right at the channel.
The tuner listens to a console channel via USB or to any audio device on your computer. The needle shows ±50 cents – green means: in tune.
- Chromatic or for guitar (including Drop D and DADGAD), 4- and 5-string bass, ukulele, violin, viola, cello and banjo
- Note detected automatically or set manually, adjustable reference pitch
- A pointer like on a measuring instrument, plus a strobe chase that stands still when the note is in tune
- MUTE silences the channel on the console while you tune – automatically with Auto mute
- Straight from the channel view, with the instrument matching the role
More features
What else BandAssist can do
Mixer & soundcheckAll channel strips with layers, a guided soundcheck with suggestions to preview, feedback, room and AI.
Channel viewEQ curve, compressor transfer curve, sends, delay and 🎧 listen – everything about a channel at a glance.
Effects & routingEffects rack with every parameter, and the console’s routing as a patch bay with cables.
Monitor mix & tabletEvery band member sets their own mix on their own phone; every view also runs on tablets and phones.
Setlist & music standRepertoire and setlists with metronome, sheet music and lyrics on the mic stand, MIDI and console scenes per song.
SamplerIntro, applause or break music at the push of a button – with banks per song, triggered from any device.
Control panel & controllersYour own surfaces made of buttons, faders and displays – also on MIDI controllers and the Stream Deck.
LightLighting control via Art-Net: fixtures from a library of around 650 devices, and the automation follows the music.
RecordingAll channels as a multitrack recording, one WAV file per channel – with track view and waveform.
